Specifications

Manufacturable Specification Ranges

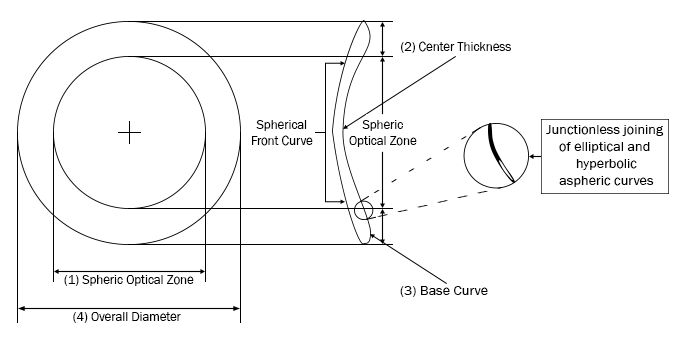

notion image
Name
Range
(1) Spheric Optical Zone
6.00 - 9.50 mm
(2) Center Thickness
0.07 - 0.14 mm
(3) Base Curve
8.0 - 9.0 mm
(4) Overall Diameter
13.0 - 15.0 mm
Material
Water Content
Spherical Range
Features
HEMA
38%
0.00D to -10.00D
UV Blocking
MPC
42%
0.00D to -10.00D
ㅤ
MPC PDMS
45%
+6.00 to -20.00
UV Blocking
MPC TRISS
40%, 47%, 50%, 53%
+6.00 to -20.00
UV Blocking
Bluelight Filtering
NVP
38%, 40%
+20.00 to -20.00
ㅤ

Toric Contact Lens Specifications

Material
MPC
Water Content
40%
DK/T
12 x 10-11(cm2/s)[mL O2/(mL·mmHg)] 9 x 10-11(cm2/s)[mL O2/(mL·hPa)]
Cylindrical (CYL)
-0.75 - -4.25 (0.50 step)
Spherical (SPH)
0.00 - -6.00 (0.25 step), -6.50 - -10.00 (0.50 step)
Axis
20º - 180º
